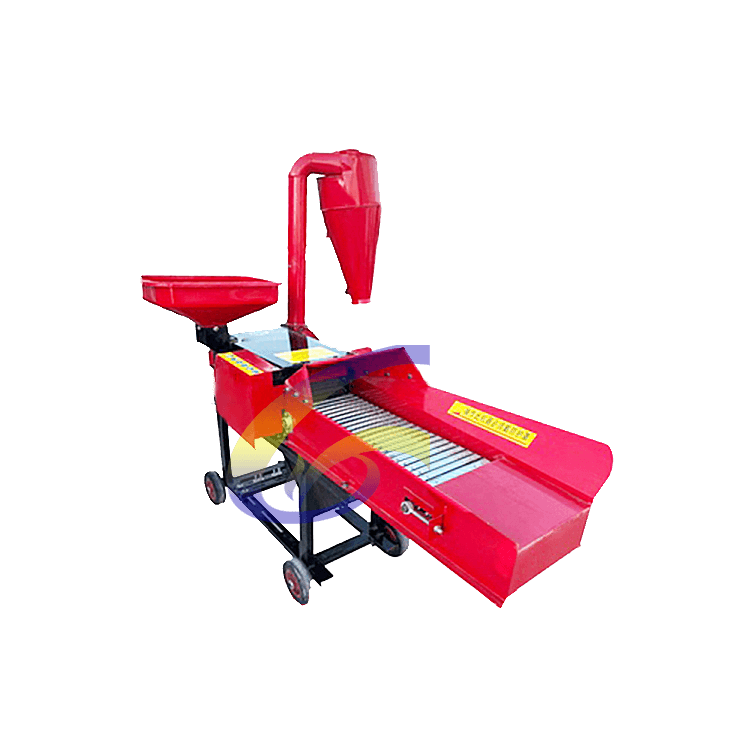

Cutting Kneading Grinding 3-In-1 Feed Processing Machine

3-In-1 feed processing machine is a grass cutting/kneading/grinding agricultural machinery, the users can according to different occasions, different yield and forage sizes, and different animal feeding options select the grass grinder machine.

3+in+1+feed grinder machine banner

WHAT CAN OUR 3-IN-1 FEED PROCESSING CRUSHING MACHINE  DO?

Crop Straw Grain Seed Cutting Kneading Grinding 3-In-1 Feed Processing Machine can cut all kinds of plant material, various kinds of green, dry corn straw, rice straw, sweet potato vine, tuber plants, vegetables, and many other stalks crop straw and forage grass. Compared with the ordinary guillotine machine, our machine adds 4 sets of stirring triangular blades. After cutting the straw, it is crushed by triangular blades to make the material finer. It is suitable for raising different livestock such as rabbits, cattle, sheep, and horses, biomass fuel, papermaking, and wood chips for growing fungi. Silage feed cutting kneading milling machine matches with different sizes of the screen, when the grain is crushed, different screens can be used to adjust the thickness, then customers can change the screen mesh to get different sizes of pellet feedMoreover, customers can choose cyclone dust collector outlet to meet your needs for fine feed processing.

This product has a variety of models, and also for adjusting the cutting grass length, we have the belt adjust and the gear adjusts for either convenient for you. Our chaff cutter machine is your best choice! Customers can choose products of different specifications according to actual needs.





OUR FC SERIES CHAFF CUTTER FEATURES

  •  Gear transmission enhances flexibility and service life, reduces grass resistance, increases the grass feed quantity, reduces noise, and improves production efficiency.
  • The main frame, bracket, and motor frame adopt a combination of iron and steel structure, which enhances the stability of work, and reduces noise too.
  • The grass roller adopts a cross shaft, with the advantage of compact structure, running agility, and simple installation.
  • Multi-choice driven; motor, diesel engine, and tractor. It is especially suited for electric scarce areas.
  • The blade adopts high-quality steel, through special technology processing, it is super wear-resistant and fixed by high strength bolt to ensure safety when running.
  • High performance-cost ratio.



WORKING PRINCIPLE OF CHAFF CUTTER

When the straw crush silk machine is running, the material is processed from the hopper into the crushing chamber, which is broken by the blow of the high-speed rotating working parts. At the same time change the material movement direction. Because of the high-speed rotation of working parts, the material layer is destroyed, and the material is moving with the rotor. In this process, due to the repeated collision of forage or particles by working parts and the body friction, the material is crushed to a geometric diameter smaller than mesh diameter. Under the action of centrifugal force and airflow, crushed material through the sieve hole leak into the powder chamber, which can be discharged from the outlet, and the cutting forage can be sprayed from the top discharge port.

3+in+1+feed grinder+structure





CHAFF CUTTER TECHNICAL DATA

Model Engine Power (kW) Weight(kg) Output  (t/h)
ZR-1200 Electric Motor 2.2~3 60 400~1200
ZR-2200 Electric Motor 3~4 130 500~2200
ZR-2800 Electric Motor 5.5 140 800~2800

3+in+1+feed grinder application



CHOOSING A CORRECT CHAFF CUTTER MACHINE

There are many fodder chopper machine brands on the market. You need to compare the following aspects when choosing a silage chopper:

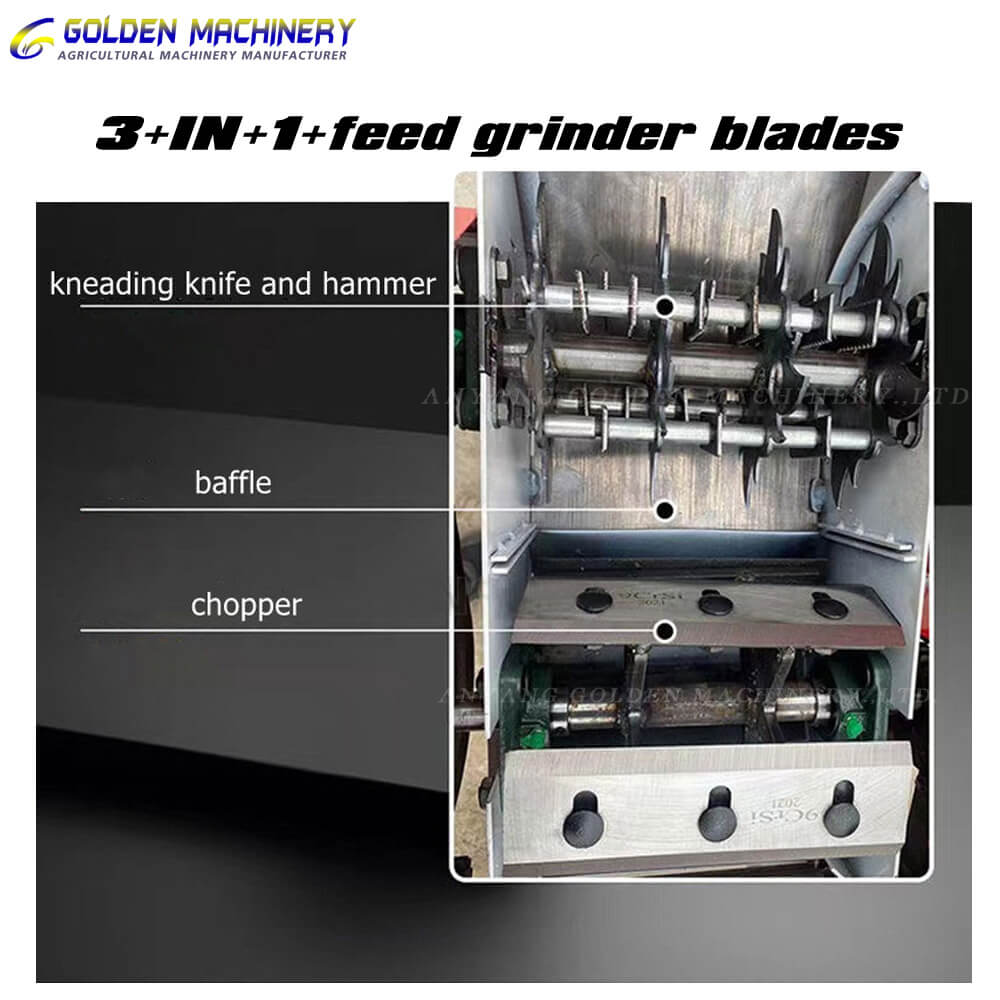

Hammers: Multi-hammer design increases the degree of material fragmentation. When the saw tooth hammer wear without edges, the user can turn the hammer replacement, but can not replace each other, can only change to the original position, so as not to affect the rotor balance.

Feeding Roller: Two kinds of feeding straw press roller to the selection, corrugate grass roller carding and pushing forage grass, and transverse roller to compact the forage.

Gear Box: This allows users to operate more simply and more conveniently, a gearbox adjusts straw length, and another can be adjusted the feed raw materials when the machine fault, so that users convenience to facilitate the use of a straw kneading machine.

Baffle Plate: The silage cutting machine inlet and outlet have three baffle plate isolation. The user can select the switch of the baffle freely according to the feeding material.

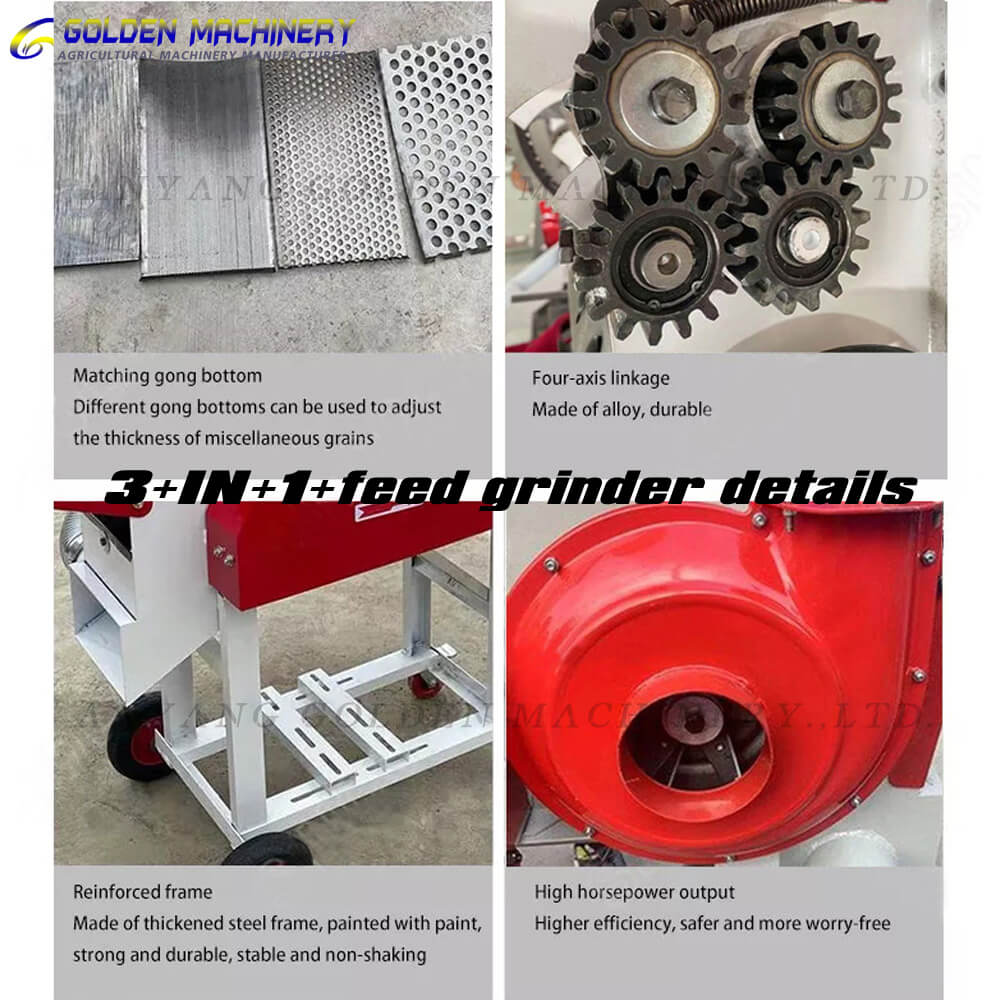

3+in+1+feed grinder details 1

3+in+1+feed grinder details 2





DELIVERY FEED CUTTING GRINDER MACHINE

Before sending the fodder chopper machine, we will test and adjust, it so you can use it directly when you get it. Choose the cheapest and safest shipping company to save cost and track the order until you get the goods.

1. Our company usually packs in standard export wooden case.
2. Transportation means by Air, by Sea or by Express and etc.
3. Shipment cost will depend on the destination, shipment way, and the weight of the goods.
4. You will get full feedback when our FC series silage cutting machinery is on the way.



3+in+1+feed grinder photo3
3+in+1+feed grinder photo2

3+in+1+feed grinder photo1





AGRICULTURAL FEED MACHINE WE HAVE

Our agriculture farm feed machines adopt a world-famous brand for the key electronic elements, pneumatic and hydraulic system to ensure high quality and reliable of the Agriculture machinery and feed machinery After the unremitting efforts of all staff, we won the approval and trust of the customers with the excellent performance, advanced technology, and good reputation.

Our Main Products: Chaff Cutter Machine, Grass Chopper Machine for Animals Feed, Fodder Kneading Chopper, Animals Feed Mixer Machine, Pellet Machine, Animals Feed Puffing Extruder, Wood Branch Crusher, Paddy/Wheat Harvester, etc.

chaff cutter machine manufacturer golden machinery



WHAT SERVICES YOU WILL HAVE

Pre-sale Service

1. Offering overall technology and business consultation services;

2. Proposing the most suitable scheme and equipment for our customer;

3. Designing and producing machines according to the special demands of clients;

After-sales Service

1. Carefully checking the machine in every working procedure, quality comes first;

2. Assisting our clients with foundation construction of equipment;

3. Dispatching engineers to install and debug the equipment, training the first-line operators on-site;

4. Regularly visit clients to solve production problems and provide our technical support;

We have more than 15 years of experience, and support your best before and after-sales service. Quality is the first and top Pursuit of our company.

Product list

FAQ & Our service

Are you a manufacturer?
We are a professional OEM manufacturer, have 3000 square meters factory.

MOQ?
1 set, or based on your order, wholesale discount.

Voltage?
220V /380V /415V, 50/60 HZ, 1 or 3 phases, customize the voltage according to your local voltage.

Delivery?
Delivery Time, 7-15 days after getting payment. (Specific time according to order quantity)

Packaging?
When packaged, the main body and parts will be packaged individually depending on the structure of the machine, but it is easy to install.

Guarantee?
The quality guarantee term is for one year, with free technical support and spare parts supply.

Payment term?
T/T, Credit card, Western Union, RMB, Alipay, WeChat, Cash, E-checking, MoneyGram, L/C, etc.

How To Order?
S.1: Inquiry the machine model and quantity you need;
S.2: A quotation for you to confirm the order details;
S.3: You payment after receiving our PI file;
S.4: We deliver goods within stipulated time.
