Floating Sinking Pellet Extruder

Our fish feed extruder machine is widely used for producing grains into high-grade aquatic feed pellets for fish, catfish, shrimps, crab, etc. The puffing fish feed pellets can float on the water surface without dissolution for over 12 hours.

extruder banner ltd



WHAT CAN OUR FISH PELLET EXTRUDER MACHINE DO?

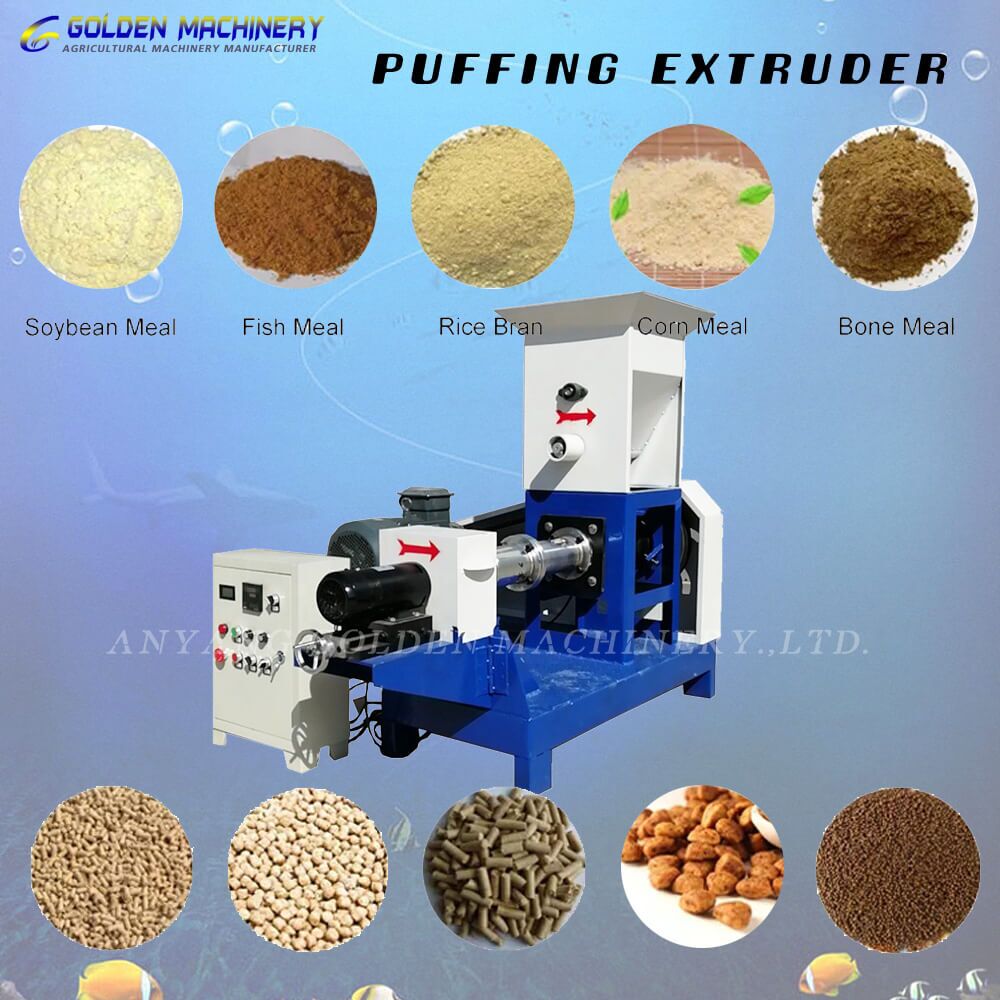

The feed pellet extruder is a device for processing soybean, rice, corn, rapeseed, and other grains into dog food, fish feed, chicken, and duck feed by pulverizing, stirring, and heating. Following the current development trend of the aquatic poultry breeding industry, we will produce feed suitable for animal digestion and absorption.
It is used for processing for dogs and cats (pet food), birds, piglets, frogs, and sinking, and floating aquatic feeds for fish. The fish feed-making machine mainly uses maize, fish powder, meat powder, and some food additive as the main raw material, through mixing, extruding, roasting, and flavoring to get the final puffed pet food. The fish pellet machine applies to the pretreatment of the animal fodder so as to reduce loss of nutrition, and advance the protein content.
The fish food machines’ size can be from 0.9mm to 10m by changing the molds. It is suitable for making feed for small fish to big fish.



OUR FISH PELLET EXTRUDER MACHINE FEATURES

The floating time can be controlled by the puffing degree adjustment. The feeding speed, cutting speed, and temperature all can be adjusted;
The electric heating device is adopted which can improve the feed expansion rate and pellets floating time;
High temperature and high-pressure cooking process can kill salmonellosis and bacterial infections and also makes the pellets easily to digest;
Screw and barrel are designed and optimized to get longer service life and lower production cost;
With different molds, the Fish Floating Feed Machine can produce different diameter pellets of food, from 0.9mm to 10 mm. The pellets food can meet different stages of fish. The food can float 24 hours;
High automatic degree, all machines just need 2 workers for operation.



WORKING PRINCIPLE OF FISH PELLET EXTRUDER MACHINE

A fish pellet machine is used to produce different kinds of floating fish feed, sinking fish feed, and pet food. It works with simple operation, and accurate parameter control, the products can be finished at the stipulated temperature, pressure, humidity, and time. Owing to the reasonable design, special materials, stability, and repairs can be guaranteed and ensured. The various shape and tastes must meet the different requirements of pet food.
The fish pellet-making machine is mainly composed of a feeder bucket, an Extrusion puffing device, power, traditional system, frame, electronic control system, etc.
The soybean extruder machine consists of a driving system, feeding device, extruding device, electric control cabinet, etc. This machine can transfer mechanical energy to thermal energy by extrusion, friction, and shearing function of a non-equidistance screw extrusion system, and form a certain pressure and temperature in the extruding chamber.

feed extruder machine principle

Raw materials:
1. Rice Dust: contain about 10-14% of protein and also contain vitamin B1, B2, B6, and a small quantity of enzyme.
2. Mustard Cake: Mix a maximum of 40% of the cake in the fish feed. But don’t use a dry cake of more than 20%. The mustard cake contains 30-32% protein. It also contains a high rate of fat.
3. Wheat Chaff: contain fiber, and controls many types of fish diseases.
4. Maize: contain protein, carbohydrate, fat, vitamin A and E.
5. Cotton Seeds: contain about 54% protein. It is a better ingredient for supplementary fish feed.
6. Fish Powder: easily digestible to fish. Fishmeal contains about 55-60% protein.
7. Bone Powder: very necessary for building fish bone.
8. Innards: very suitable and ideal feed for catfish. It contains 52% protein.

feed extruder principle 01+ltd

FISH PELLET EXTRUDER MACHINE TECHNICAL DATA

Model JQ-60 JQ-70 JQ-80 JQ-100 JQ-120 JQ-135 JQ-160
Output (kg/h) 120-150 180-200 300 400 600 800 1000
Motor Power (kW) 15 18.5 30 37 55 75 90
Feed Power (kW) 0.4 0.4 0.4 1.1 1.1 1.1 1.5
50 60 80 100 160
Cutting Power (kW) 0.4 0.4 1.1 1.5 2.2 2.2 2.2
Weight (kg) 380 400 460 1200 1600 1800 2800

CHOOSING A CORRECT FISH PELLET EXTRUDER MACHINE

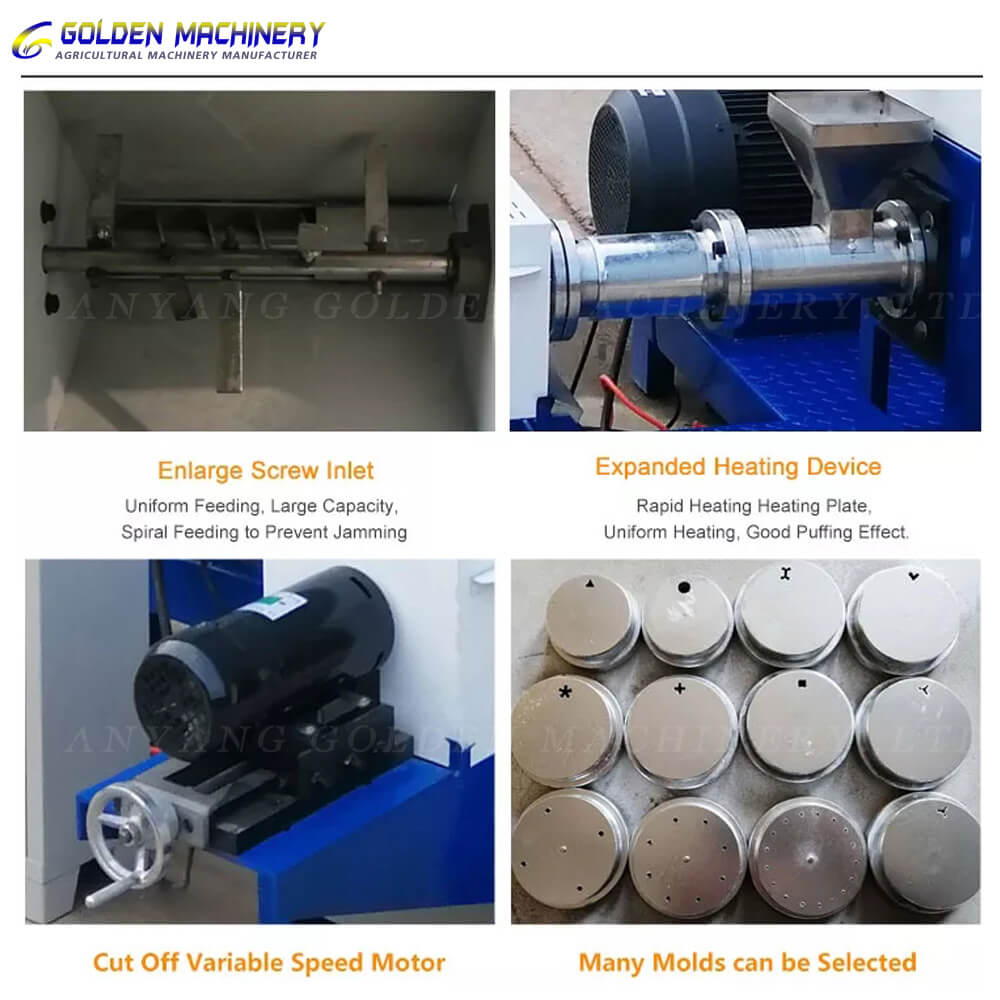

All the floating fish feed machines are made of stainless steel, this line is with reasonable design and with high automation; the screws are made of alloy steel, with a building block system structure and self-cleaning function.

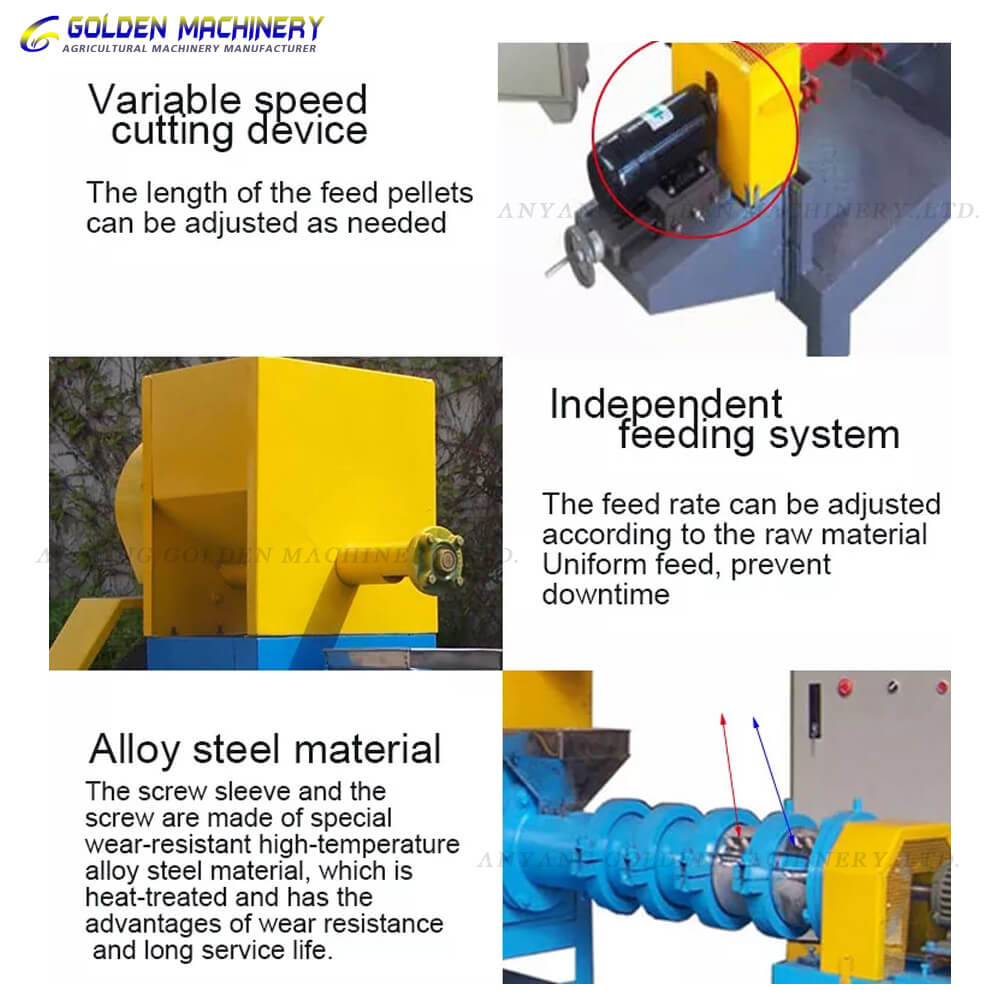

1. The screw sleeve and the screw are made of special wear-resistant high-temperature alloy steel material, which is heat-treated and has the advantages of wear resistance and long service life.
2. A unique pressurized die unit is installed to ensure feed yield and quality, and an electric heating device is provided to increase the feed expansion rate.
3. The main motor uses high-quality series three-phase motor to ensure strong power.
4. The discharge template is easy to replace, and it is only necessary to replace the required aperture template with different aperture feeds.

feed extruder machine manufacturefeed extruder machine details0

feed extruder machine model

DELIVERY FISH PELLET EXTRUDER MACHINE

Before sending the feed extruder, we will test and adjust, it so you can use it directly when you get it. Choose the cheapest and safest shipping company to save the cost and track the order until you get the goods.

Package:

1. Fish feed pellet machine will be packed in standard quantities boxes, and the production will have a safe and complete journey from our factory to your place.
2. Packaging details standard export wooden case or in the container.
Strong plywood case as exported standard, if your order is big we suggest shipping by container, we will calculate the total volume of your order and saving shipping cost for you.

Shipping:
By sea, By air; Express (DHL/FedEx; Railway; Highway)
1, we will serve your shipping method for ocean transport, airlift, freight, and so on.
2, The delivery time is usually 7-15 working days upon receipt of your payment.

feed extruder machine packing

AGRICULTURAL FEED MACHINE WE HAVE

Our agriculture farm feed machines adopt a world-famous brand for the key electronic elements, pneumatic and hydraulic system to ensure high quality and reliable of the Agriculture machinery and feed machinery After the unremitting efforts of all staff, we won the approval and trust of the customers with the excellent performance, advanced technology, and good reputation.

Our Main Products: Chaff Cutter Machine, Grass Chopper Machine for Animals Feed, Fodder Kneading Chopper, Animals Feed Mixer Machine, Pellet Machine, Animals Feed Puffing Extruder, Wood Branch Crusher, Paddy/Wheat Harvester, etc.

chaff cutter machine manufacturer golden machinery



WHAT SERVICES YOU WILL HAVE

Pre-sale Service

1. Offering overall technology and business consultation services;

2. Proposing the most suitable scheme and equipment for our customer;

3. Designing and producing machines according to the special demands of clients;

After-sales Service

1. Carefully checking the machine in every working procedure, quality comes first;

2. Assisting our clients with foundation construction of equipment;

3. Dispatching engineers to install and debug the equipment, training the first-line operators on-site;

4. Regularly visit clients to solve production problems and provide our technical support.

We have more than 15 years of experience, and support your best before and after-sales service. Quality is the first and top Pursuit of our company.

Product list

Forage Cutter +
 – FC-2.5E Mini Type Chaff Cutter
 – FC-2.5D Mini Type Chaff Cutter
 – FC-2.5TC Mini Type Chaff Cutter
 – FC-4C Animal Feed Chopper
 – FC-4D Animal Feed Chopper
 – FC-4TC Animal Feed Chopper
 – FC-6A Multifunction Fodder Chopper
 – FC-6D Multifunction Fodder Chopper
 – FC-6TA Multifunction Fodder Chopper
 – FC-9A Livestock Silage Chopper
 – FC-9TC Livestock Silage Chopper

Feed Chopping Machine +
 – Grain Crop Cereal Grinder
 – Corn Maize Mill Machine
 – Cutting/Kneading/Grinding 3in1 Machine

Feed Mixing Machine +
 – Horizontal Powder Mixer
 – Vertical Poultry Feed Mixer
 – TMR Dairy Feed Crush Mixer

Feed Processing Machine +
 – Flat Die Feed Pellet Mill
 – Floating Sinking Pellet Extruder
 – Ring Die Granulator

More Agriculture Machine +
 – Wood Branch Chipper Machine
 – Compact Wheel Loader
 – Corn Straw Silage Harvester

FAQ & Our service

Are you a manufacturer?
We are a professional OEM manufacturer, have 3000 square meters factory.

MOQ?
1 set, or based on your order, wholesale discount.

Voltage?
220V /380V /415V, 50/60 HZ, 1 or 3 phases, customize the voltage according to your local voltage.

Delivery?
Delivery Time, 7-15 days after getting payment. (Specific time according to order quantity)

Packaging?
When packaged, the main body and parts will be packaged individually depending on the structure of the machine, but it is easy to install.

Guarantee?
The quality guarantee term is for one year, with free technical support and spare parts supply.

Payment term?
T/T, Credit card, Western Union, RMB, Alipay, WeChat, Cash, E-checking, MoneyGram, L/C, etc.

How To Order?
S.1: Inquiry the machine model and quantity you need;
S.2: A quotation for you to confirm the order details;
S.3: You payment after receiving our PI file;
S.4: We deliver goods within stipulated time.
