Heavy-Duty Industrial Chaff Cutter Machine

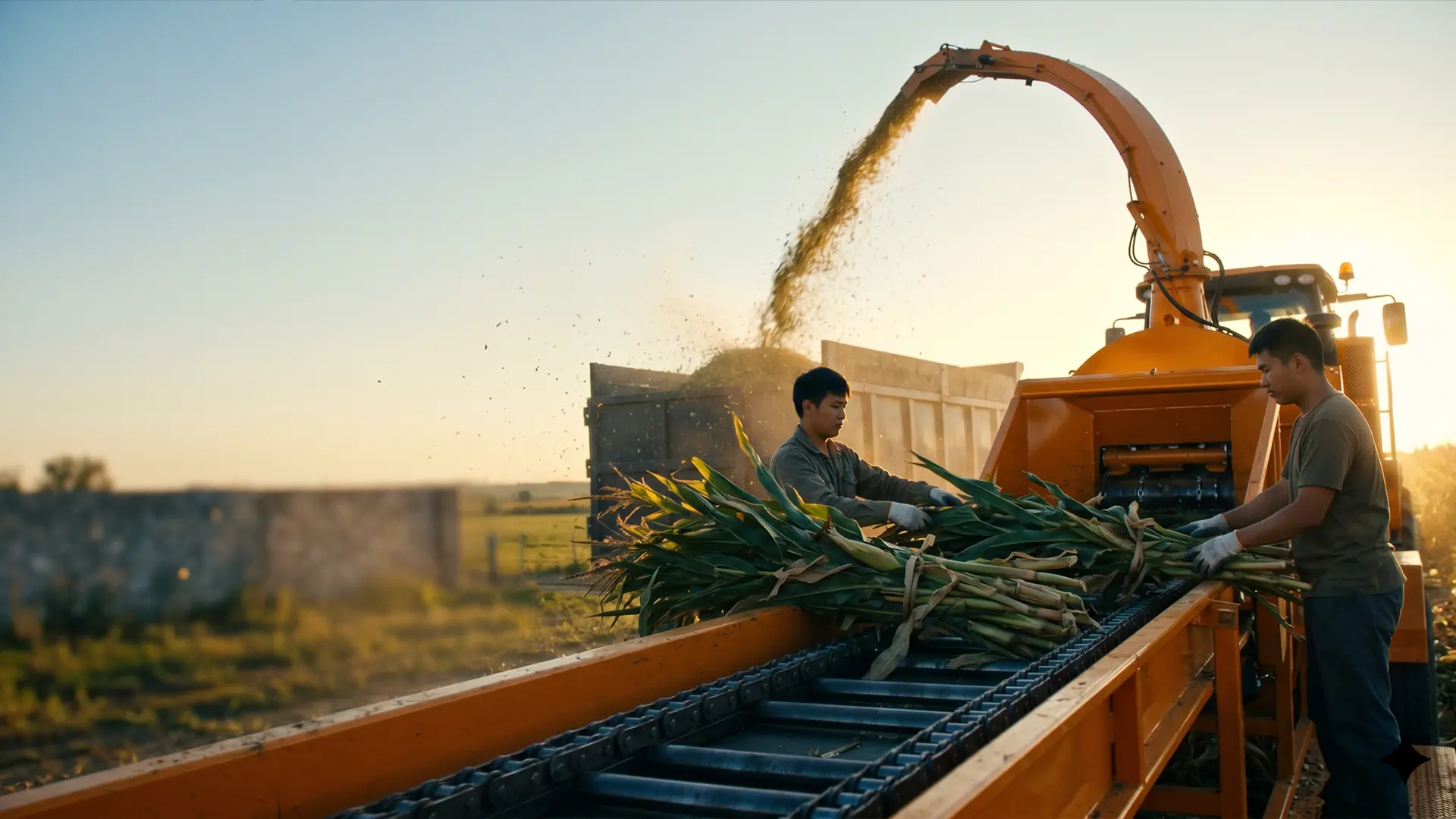

Engineered with a solid dynamic-balanced rotor and an automated hydraulic belt feed system. Slices dry stalks, wet corn, and massive forage crops into uniform 10-30mm segments at an unyielding 30-ton-per-hour output—built specifically to optimize cost-efficiency on industrial dairy operations.
Engineering Definition
Heavy Duty Forage Chopper Definition & Capability
An industrial chaff cutter is a high-volume, continuous-operation agricultural processing machine engineered for industrial dairy operations. Operating at up to 30 tons per hour, it shreds, chops, and refines raw fodder, stalk and organic biomass into highly uniform, easily digestible silage segments to prevent selective feeding.
- Continuous Automated Feed: Chain-plate feeding system prevents clogging.
- Extreme Rotor Life: Dynamic balanced wheel holding 3-4 premium manganese steel blades.
- Wastage Reduced: Cuts fodder into precise 10-30mm segments, slashing daily waste by 35%.
- High Digestibility: Softened fibers accelerate silage fermentation and rumen digestion.
30 TPH
Max Capacity
Operational Challenges
The Real Cost of Substandard Fodder Processing
Skyrocketing Labor Expenses
Manually processing forage or operating multiple low-capacity cutters requires excessive labor forces, cutting deeply into thin agricultural operating margins on big dairies.
Severe Material Wastage
Inconsistent cutting lengths allow livestock to selectively sort soft leaves, leaving tough, uncut woody stalks behind as wasted, un-fermented agricultural residue.
Frequent Equipment Downtime
Weak sheet-metal builds and standard carbon blades cannot endure high-tonnage wet crops, constantly fracturing and pausing entire feeding operations.
Precision Engineering
3D Component Anatomy & solution integration
A Automated Drive
Hydraulic Chain-conveyor

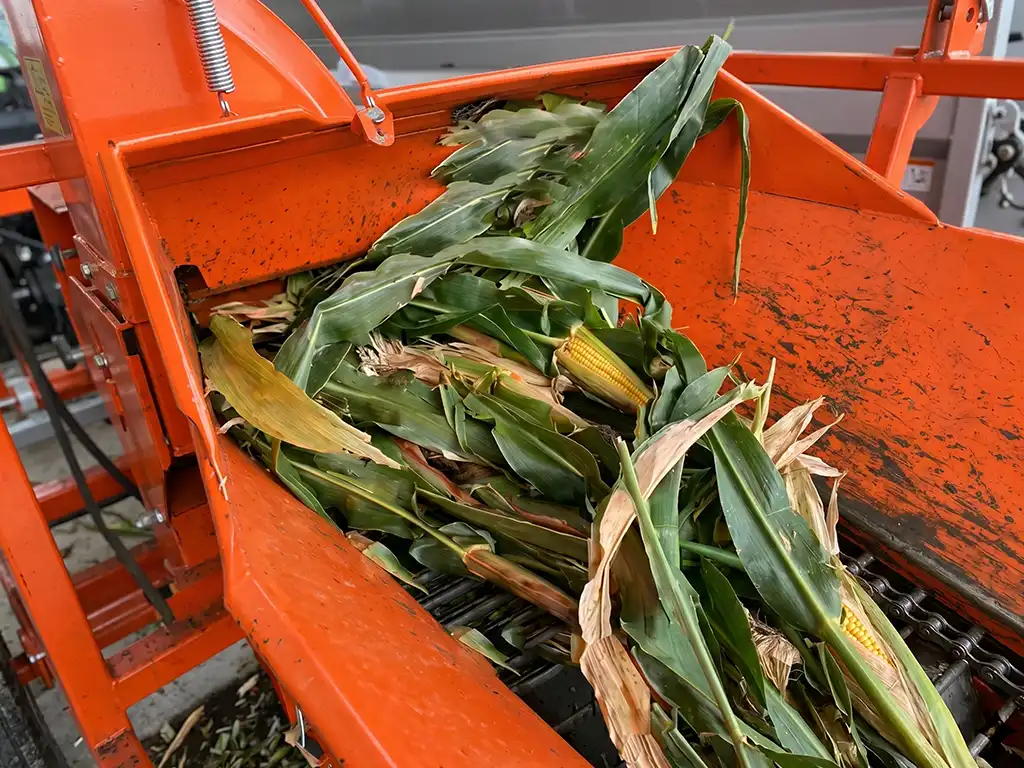

Heavy-duty steel chain-link plates consistently push wet material and heavy biomass into feed pinch-rollers without slippage.
B Processing core
3-4 Manganese Steel Blades
Heavy dynamic balanced rotor equipped with 3 to 4 premium manganese-alloy steel blades, generating high inertia slice-cutting to shred high-tonnage stalks smoothly.
C Material Handling
Hydraulic Step-less Gear
Enables seamless shifting to adapt to diverse materials from standard Napier grass to thick timber-like biomass stalks.
D Production Support
Modular Coupling System
Designed for easy, seamless integration directly into customized high-efficiency automated feeding production lines.
ISO 9001 Certified
Industrial Standards

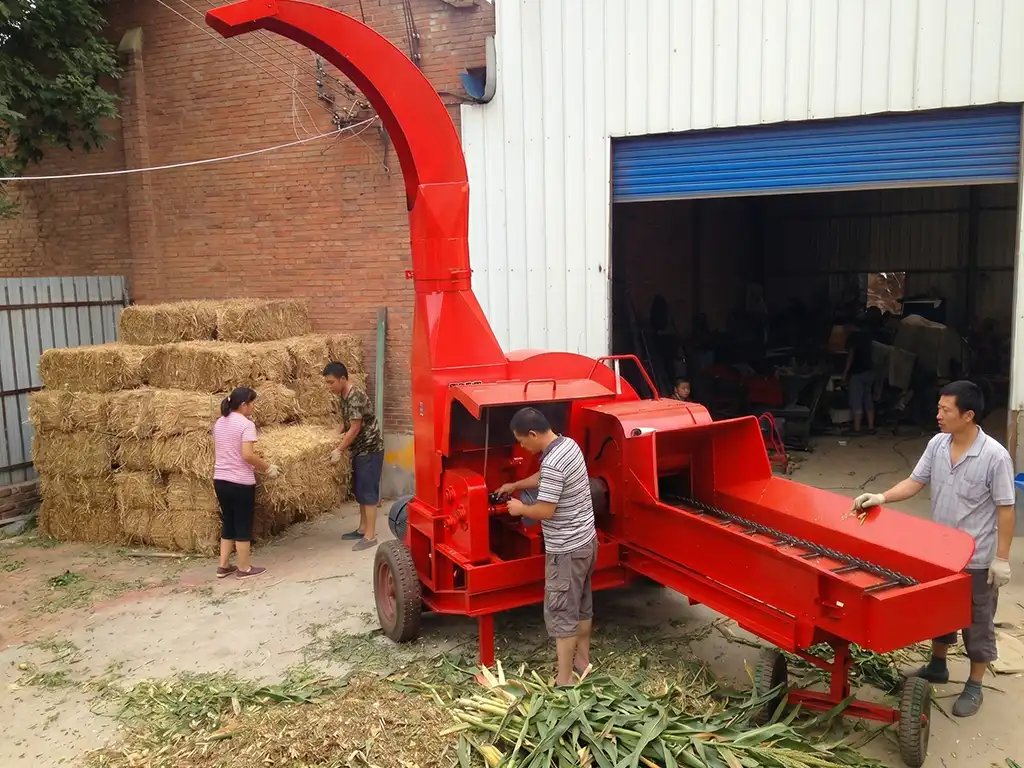

Uncompromising safety for continuous factory operations
Active Protective Shielding
Intake throat integrates mechanical safety barriers and manual-override controls, completely isolating operator hands from internal cutter blades.
Magnetic Overload Shutdown
Equipped with high-sensitivity thermal overload relays that immediately trigger magnetic shut-off in milliseconds if metal debris is introduced.
ISO-Certified Dynamic Balance
All cutting shafts undergo digital dynamic balance testing before leaving our facility, mitigating motor wear and eliminating operation vibrations.
Technical Parameters
Industrial Chaff Cutter Specifications
| Parameter Specifications | Industrial FC-9 | Heavy Duty FC-30 |
|---|---|---|
| Maximum Processing Capacity | 8,000 - 10,000 kg/h | 25,000 - 30,000 kg/h |
| Electric Power Requirement | 15 - 22 kW | 30 - 45 kW |
| Heavy-Duty Rotor Blade Count | 3 - 4 Manganese Steel Blades | 4 Heavy Blades (Dynamic Balance) |
| Hydraulic Auto-Feeding Belt | Standard | Standard |
| Overload Magnetic Clutches | Optional | Standard |
| Tractor PTO Auxiliary Drive | Standard | Optional |
| Total Net Machine Weight | 1,240 kg | 2,380 kg |
Fodder Knowledge
Frequently Asked Questions
Our heavy-duty machines are engineered with dual hydraulic-feed rollers and active chain plate feeding. This ensures that raw materials such as wet maize crops, high-moisture stover, and leafy Napier grass are automatically grabbed and pushed into the blades without silage clogging.
Yes, we specialize in factory-direct integration. The machine features a modular coupling interface and adjustable-height discharge chutes, making it extremely straightforward to synchronize with commercial conveyor belt feeds, pelletizing plants, or existing automated dairy silage setups.
Every industrial chaff cutter machine is configured with dynamic magnetic overload clutches. If metals or stones are fed into the inlet, the system instantly triggers an automatic magnetic shutdown in milliseconds, protecting the premium manganese blades from impact fractures.
The step-less hydraulic gearbox allows operators to quickly alter the belt speed. Slicing sizes can be adjusted between 10mm and 40mm to meet precise nutritional standards, ensuring highly digestible feed for cattle and sheep and maximizing daily silage fermentation quality.
