Heavy Duty Tractor Chaff Cutter | PTO Driven Forage Chopper

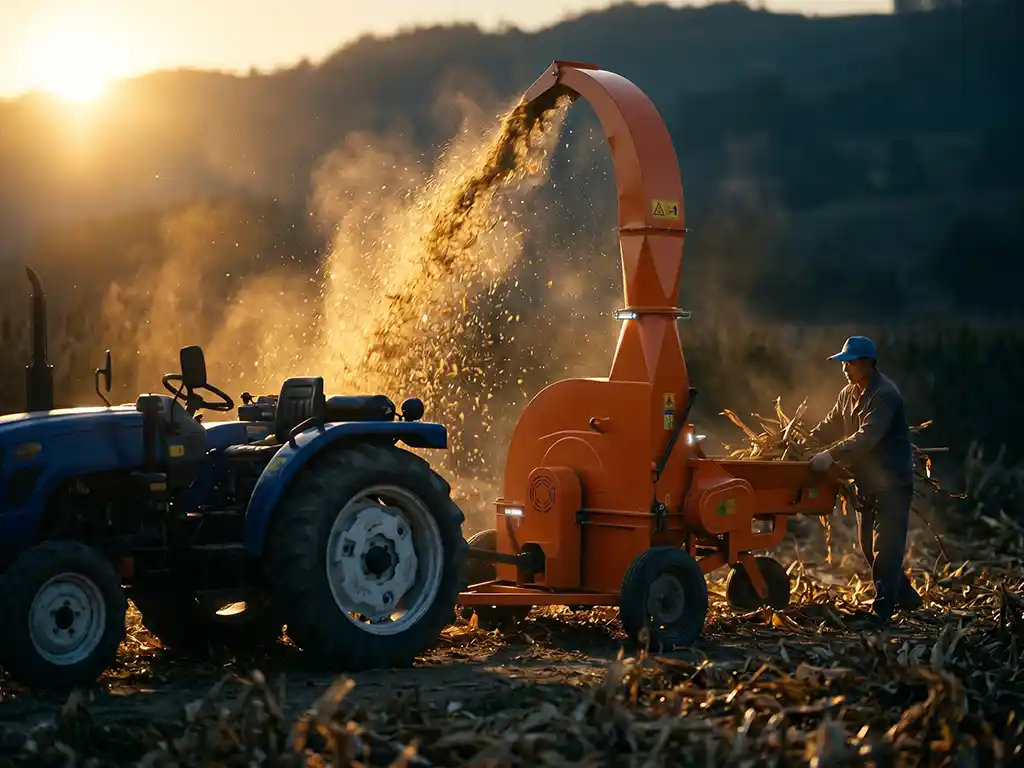

Heavy-duty tractor driven chaff cutter machine operating in off-grid farmland

Off-Grid Field Feeding

Tractor Chaff Cutter Machine

Powered by tractor PTO shafts. Slices raw forage and wet Napier grass into high-quality silage instantly. Engineered for remote mountainous pastures with zero grid electricity dependency.

Get Wholesale Price Now View PTO Parameters

What Is a Tractor Chaff Cutter?

A tractor chaff cutter is an off-grid agricultural machine driven via tractor cardan shafts (PTO). By directly converting the mechanical torque of the tractor engine into powerful rotational inertia, it eliminates the need for electric motors or diesel generators.

As a vital extension of the chaff cutter machine lineup, this mobile forage processor offers outstanding portability and zero grid-power limitations, keeping farm costs at an absolute minimum.

✔

Instant Field Deployment

Tractor trailing hitch lets a single farm worker transport and operate the machinery, reducing manual labor costs by 50%.
✔

Unmatched Fuel Efficiency

By leveraging existing tractor PTO power, it prevents the double capital cost of maintaining separate engine systems.
✔

Superior Feeding Nutrition

Produces highly digestible silage cut to a uniform 10-30mm length, ensuring maximum livestock feed consumption.

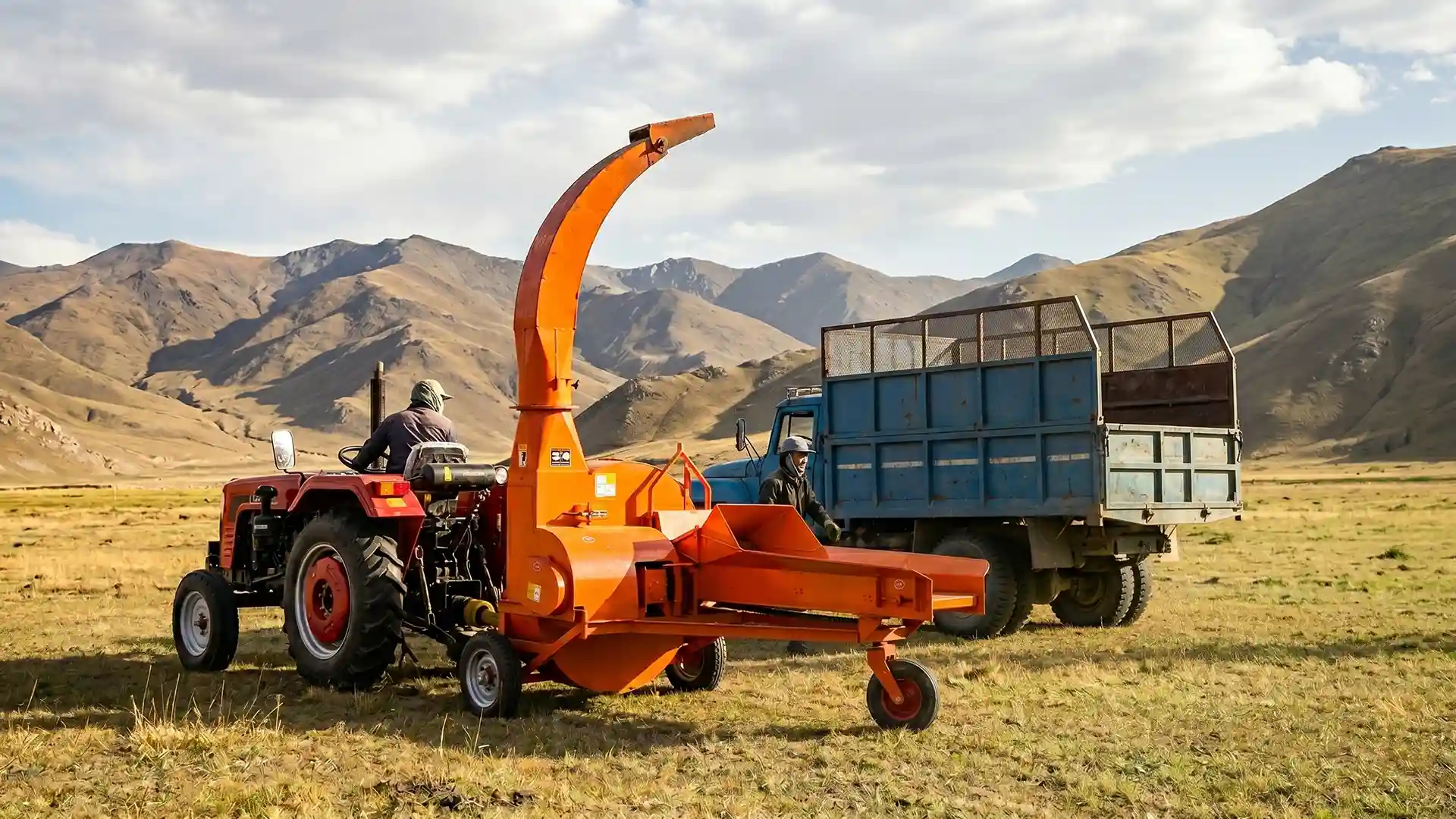

PTO tractor linkage chaff cutter processing silage crops in mountain pastures

Tractor PTO Connection: Ready

Engineered for High-Stress Off-Grid Farmlands

We utilize 30+ years of direct factory engineering to craft PTO driven fodder shredders that tolerate debris impact and sustain long continuous hours of operation without power drops.

Manganese Steel Blades

Equipped with 3-4 heavy-duty 65Mn steel blades. Features exceptional dynamic balance, lasting up to 3 times longer than standard carbon carbon blades under tough soil conditions.

Tractor Cardan Shaft Linkage

Heavy-duty PTO shaft connection ensures direct, zero-slip power transfer. Absorbs extreme vibration and shock to protect the tractor drivetrain from instantaneous crop resistance spike.

Auto-Feed & Anti-Clog system

Our mechanical automatic feeding rollers continuously grab stalks without manual shoving. The system includes a dual-direction lever that instantly reverses crop feed to clear dense clogs safely.

Technical Specifications of PTO-Driven Series

We support custom tractor linkage options across our entire medium-to-industrial capacity range. Review the parameters below to select the matching model for your tractor HP.

Model	Shredding Capacity	Required Tractor Power	Manganese Steel Blades	Transmission Type	Tractor Linkage Type	Field Mobility
FC-2.5 PTO	2.5 - 3.0 Tons/h	12 - 18 HP	4 Blades (Single Disc)	Cardan Shaft Only	3-Point Hitch (Cat I)	Dual Rubber Wheels Standard
FC-4.0 PTO	4.0 - 5.0 Tons/h	15 - 24 HP	4 Blades (Single Disc)	Cardan Shaft + Gearbox	3-Point Hitch (Cat I/II)	Four Pneumatic Wheels Standard
FC-6.0 PTO	6.0 - 8.0 Tons/h	20 - 35 HP	6 Heavy Blades	Cardan Shaft + Dual Belts	3-Point Hitch / Drawbar	Heavy-Duty Off-Road Tires
FC-9.0 PTO	9.0 - 12.0 Tons/h	35 - 50 HP	6 Heavy Blades	Heavy Duty Gearbox	Trailed / Drawbar Linkage	Twin-Axle Field Chassis
FC-30.0 PTO	30.0 Tons/h	80+ HP	Dynamic Multi-Knife Disc	Double-Reduction Gearbox	Trailed Heavy Chassis	Steel Crawler Tracks Optional

* Looking for smaller single-phase household units? Learn about our mini chaff cutter series.

Versatile Field Applications

Because our machinery does not require fixed-point power, it easily tackles remote and dynamic agricultural jobs across the globe.

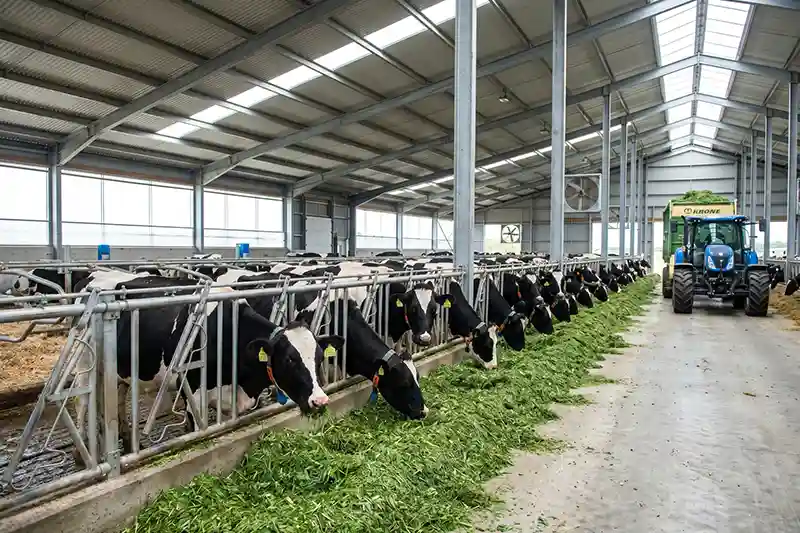

Dairy farm cows eating digestible fresh silage processed by tractor chaff cutter

Mountain Dairy Farms

High-Altitude Dairy Feeding

Ideal for mountain farms where grid power is unstable. Processes fresh green forage instantly to maintain milk production levels.

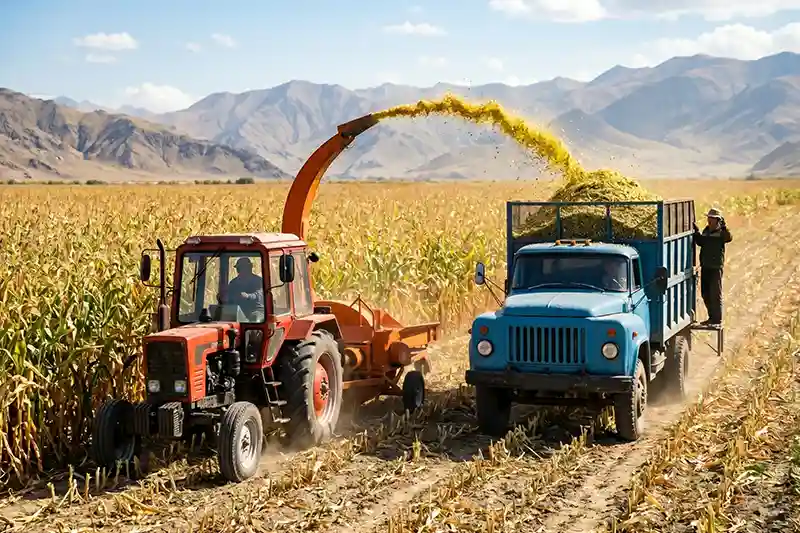

Remote crop field harvesting and silage packing using tractor PTO power

Mobile Contract Cutting

Nomadic & Field Contractors

Tractor trailing hitches allow rapid transit from field to field, turning harvested residue into packed silage on site.

Tractor driven machinery preparing organic biomass waste for agricultural soil preparation

Biomass Mulching

Organic Waste Processing

Shreds dry crop straws, corn stalks, and twigs into consistent ground mulch. Promotes soil moisture and rapid organic composting.

Need to perform fine powder grain crushing on-site? Connect this unit with our heavy-duty feed crusher line.

Frequently Asked Questions

Get expert mechanical answers directly from our factory engineers regarding tractor PTO compatibility and operation.

How do I verify if my tractor HP matches the PTO chaff cutter? +

Our tractor driven models operate efficiently on power levels ranging from 12 HP up to 80+ HP. For instance, small 3-point hitch tractors (under 20 HP) pair perfectly with the FC-2.5 PTO model. Our factory provides custom input shafts to match Category I, II, or III tractor link hookups.

Chaff cutter vs. forage harvester: What is the main operational difference? +

A forage harvester is mobile field machinery that cuts standing crops and chops them simultaneously while moving. A tractor chaff cutter is positioned stationary at the farm edge or silage pit, utilizing the parked tractor's idle PTO output to process pre-harvested forage. For field harvesting, explore our forage harvester models.

Is a cardan shaft included with my purchase? +

Yes, every factory-direct PTO chaff cutter shipped includes a heavy-duty, ISO-certified cardan shaft. The shaft comes equipped with a spring-loaded slip clutch or shear bolt safety system to prevent overload damage to your tractor's drivetrain.

How can I purchase replacement blades and belt accessories? +

We guarantee a lifetime supply of critical components. Since we are a direct factory, we ship original 65Mn manganese steel blades, rollers, and PTO gears globally via DHL/FedEx within 3-5 days. Check our chaff cutter selection guide or contact our parts division.
